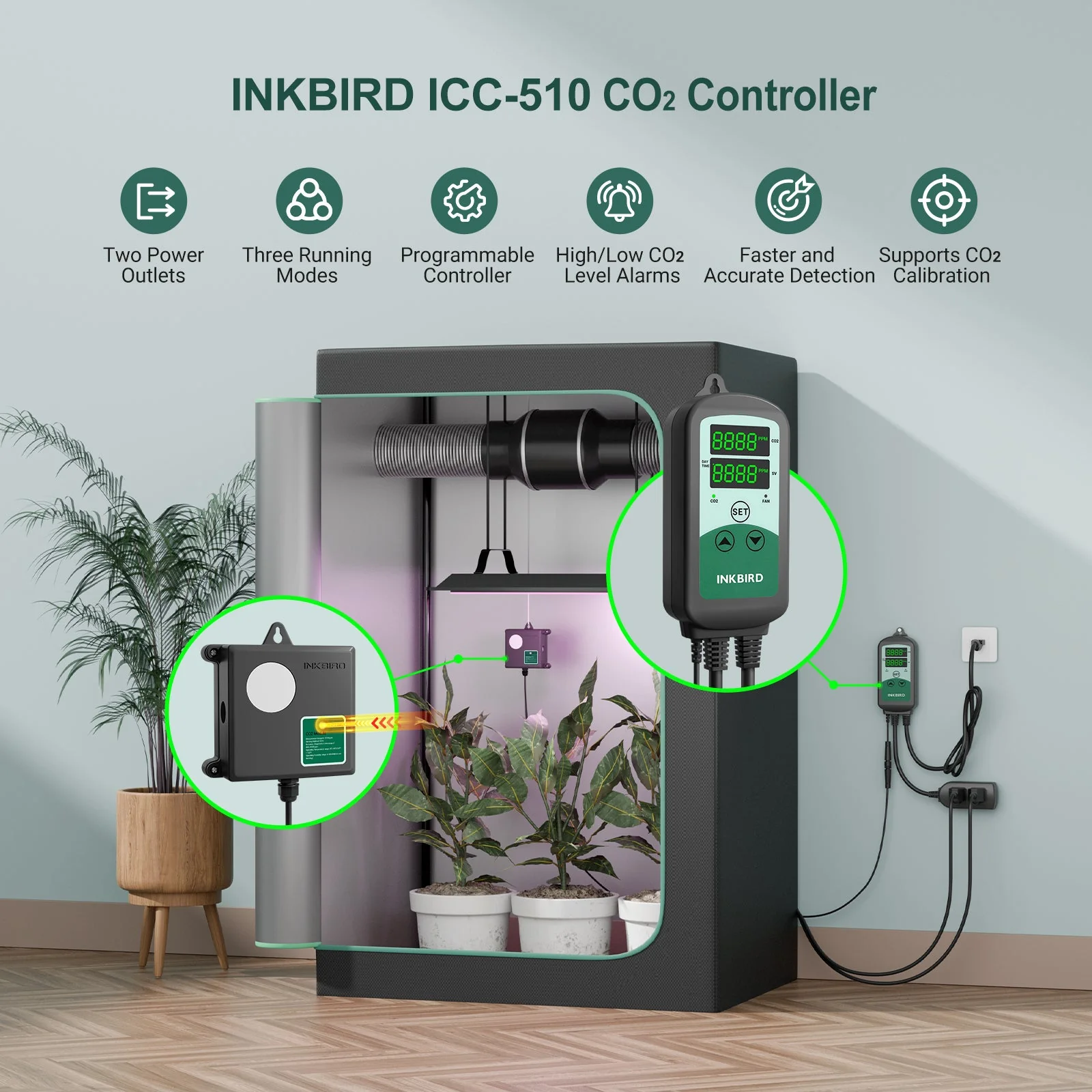

DUAL OUTLETS: INKBIRD ICC-510 adopts a dual outlet design, which makes it capable of connecting CO2 equipment and ventilation system at the same time, helping you to maintain an appropriate CO2 concentration in indoor planting and promoting photosynthesis of plants to make them grow vibrant and healthy.

THREE MODES: This CO2 controller offers 3 intelligent operating modes to meet different needs. There are 2 plant modes, plant mode with fan and plant mode without fan, specifically designed for use in greenhouses, grow tents and indoor planting, and a human mode specifically designed for human activity areas such as attics and basements. Switch between modes at the touch of a button, making it easy to cope with different scenarios.

SMART ALARMS: It integrates the function of highly sensitive CO2 concentration monitoring and supports customizable high and low CO2 alarm setting, so it can alert you in time if the CO2 concentration is abnormal, ensuring a safe and suitable environment for your plants. The alarm function can be turned on or off according to your actual needs, which is a more humanized design than before.

LIGHT SENSING: A photo sensor is built into the CO2 sensor, making it excellent at controlling CO2 output according to light intensity. It will automatically activate the CO2 output that runs at your preset programme during the day and deactivate it at night, effectively optimizing power consumption while promoting healthy plant growth.

ACCURATE DETECTION: With high measurement accuracy of up to 50ppm+5% and fast detection every 1 sec, this ICC-510 CO2 controller is reliable and trustworthy for CO2 monitoring and control. It also provides two ways of calibration, general calibration and professional calibration, so no matter whether in routine maintenance or professional application, it can keep the best performance in use.

Description

The INKBIRD ICC-510 is a plug and play CO2 controller that comes with a professional grade CO2 sensor manufactured to ANSI/ASHRAE Standard 62.1-2022+Addendum ab (31 October 2023) RESET Grade B and provides you with Plant Mode and Human Mode for different usage scenarios. The plant mode is suitable for plant environments that require high levels of CO2 during lighting, such as plant tents and greenhouses. In addition, it is equipped with a photo sensor to automatically detect whether there is lighting or not. The human mode is suitable for indoor environments where people are active every day. It monitors CO2 levels throughout the day and turns on the exhaust fan when needed, creating a healthier and more comfortable living environment for you and your families.

Main Features

² Dual outlets compatible with CO2 device and ventilation fan

² Three running modes, Plant mode with fan / Plant mode without fan / Human mode

² Professional-grade CO2 sensor to realize fast measurement and accurate control

² Wide CO2 measurement range from 0 to 9999 ppm

² Built-in photo sensor to intelligently control the CO2 output

² High and low CO2 level alarms with user-defined alarm thresholds

² Two ways to calibrate, general calibration and professional calibration

² Saves all settings even after a power failure

Specifications

l Model Number: ICC-510

l Product Name: CO2 Controller

l Input Power: 100 to 240 Vac 50/60 Hz 10 A MAX

l Output Power: 100 to 240 Vac 50/60 Hz 10 A MAX

l Operating Temperature: 0 to 50 ℃/32 to 122 ℉

l Operating Humidity: 0 to 95 %RH (non-condensing)

l CO2 Measurement Range: 0 to 9999 ppm

l CO2 Accuracy: ±(50ppm+5%) in the range from 400 to 9999 ppm

l CO2 Sampling Interval: every 1 sec

l Sensing Method: NDIR

Package Contents

CO2 Controller*1

CO2 Sensor*1

User Manual*1
